# Field & Fieldset: Configure Highlighting

## In order to emphasize the importance of certain fields and fieldsets within a document type, you can configure Highlighting during the Extraction Validation process.

This configuration is only available for individual document types.

### Where to Find the Highlighting Configuration

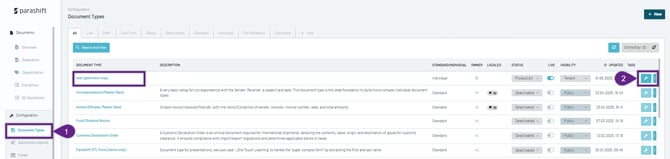

To configure highlighting, navigate to the following menu:

![](https://support.parashift.io/hs-fs/hubfs/image-png-May-02-2025-06-26-29-1597-AM.png?width=670&height=159&name=image-png-May-02-2025-06-26-29-1597-AM.png)

1. Configuration -\> Document Types
2. Select the document type you wish to configure

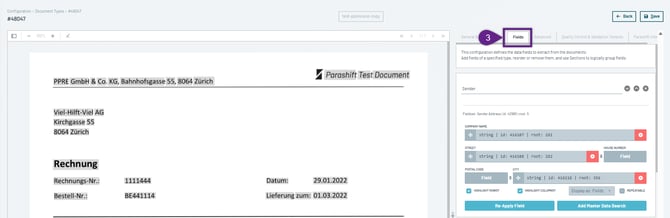

3. Click on Fields (see below)

![](https://support.parashift.io/hs-fs/hubfs/image-png-May-02-2025-06-27-03-9723-AM.png?width=670&height=219&name=image-png-May-02-2025-06-27-03-9723-AM.png)

### Available Highlighting Options

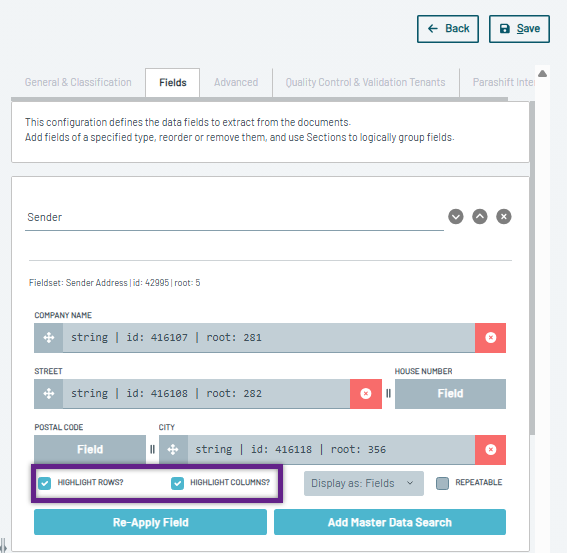

In the Fields section, you will find two checkboxes that control the highlighting behavior:

- Highlight Rows?
    - When enabled, the system will highlight every row with a box around all fields in the document type.

- Highlight Columns?
    - This option highlights the every column of fields within a different color.

![](https://support.parashift.io/hs-fs/hubfs/image-png-May-02-2025-06-29-12-5881-AM.png?width=567&height=553&name=image-png-May-02-2025-06-29-12-5881-AM.png)

By selecting one or both of these options, you can tailor the highlighting to emphasize the parts of the document that are most important during validation.

### Examples of Highlighting Configuration

To better illustrate how these settings work, below are two examples:

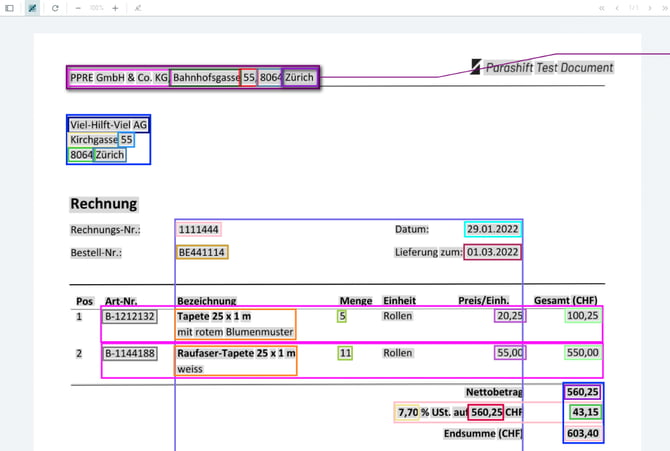

- **Example 1:** All fieldsets are highlighted in the document. This configuration makes all the important fields stand out for easier identification during validation.

![](https://support.parashift.io/hs-fs/hubfs/image-png-May-02-2025-06-29-53-3211-AM.png?width=670&height=452&name=image-png-May-02-2025-06-29-53-3211-AM.png)

- **Example 2:** No highlighting is applied during the extraction validation. This provides a more neutral view of the document for comparison. Here you only see those fields which has been confirmed for extraction already.

![](https://support.parashift.io/hs-fs/hubfs/image-png-May-02-2025-06-30-23-7859-AM.png?width=670&height=451&name=image-png-May-02-2025-06-30-23-7859-AM.png)
