Validation Settings

Learn how to configure the validation settings for each field

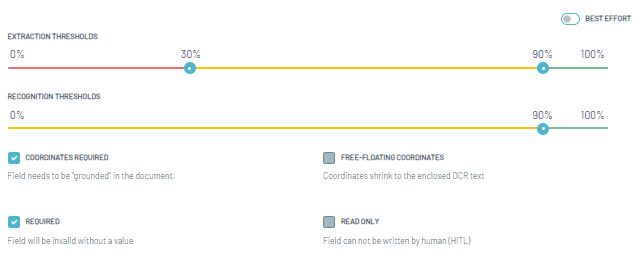

 For every field, one can configure the validation setting in order to facilitate the document validation process in the desired way. These options appear at the lower half of the field configuration page.


Validation setting "Not for validation"

If the option "not for validation" is enabled, the field is set to read only.

Validation setting "Coordinates required"

Training in Parashift Platform works by coordinates of values. This allows the environment of the value to be analyzed and a set of rules to be derived. If the "coordinates required" option is set, a value can no longer be entered exclusively via the keyboard, but must be drawn using the mouse.

Validation setting "Free-floating coordinates"

Allow for annotating any region of document (useful when no token around region available).

Validation setting "Help message"

If a help message is defined, this hint is displayed beside the question mark, in this case "Purchase order number"
Parameter
Description
Message
Help message

Validation setting "Regex Warning"

If a warning is defined, a warning message is displayed in orange, if the search string has no result. This option has nothing to do with the extraction.
A warning does not prevent the completion of a document.
Parameter
Description
Pattern
Search string (regex)
Message
Error message

Validation setting "Regex Error"

If an error is defined, an error message is displayed in red, if the search string has no result. This option has nothing to do with the extraction.
Unlike the warning, a document cannot be completed if an error occurs.
Parameter
Description
Pattern
Search string (regex)
Message
Error message
